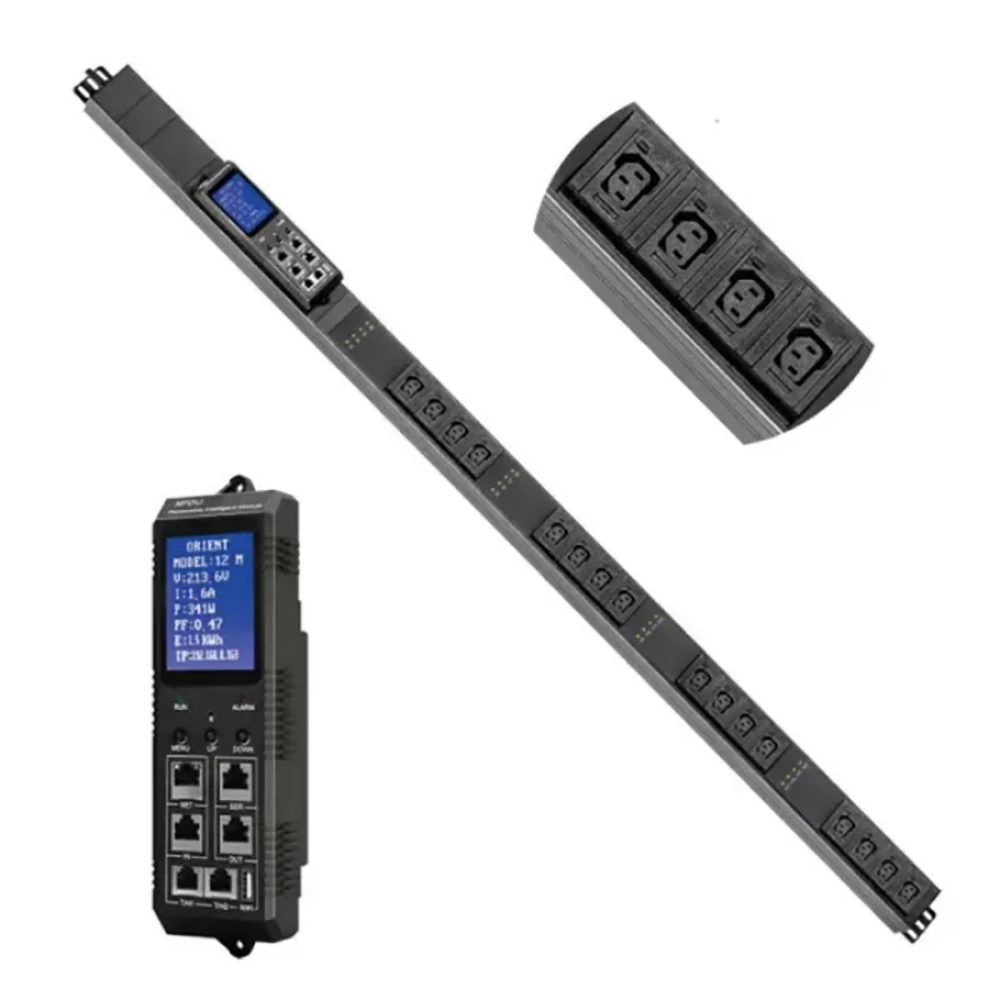

Intelligent Power Distribution Unit (PDU): Reliable Power Control Solution for Data Centers

1. What Is a Smart Metered Rack Switched PDU

The intelligent metered and controllable rack-mount PDU is an advanced power distribution unit designed specifically for high-density IT environments, including data centers, server rooms, etc. Unlike basic power strips, this intelligent power distribution unit provides real-time monitoring, remote control, and per-outlet power metering. It allows administrators to turn individual outlets on or off, set current limits, and receive overload alerts — all over TCP/IP.

1.1 Our Solution

Built with an aluminum alloy housing, our intelligent PDU comes in 1U or 2U sizes and supports horizontal or vertical mounting. This product offers 8 to 32 sockets, supports a voltage range of AC110V to AC380V and a current range of 10A to 125A, and is suitable for single-phase and three-phase applications.

2. Key Features of This Intelligent PDU

Flexible Input Interface Options

The PDU comes standard with a single input or an optional dual input. Its input interface supports over ten connector types for compatibility with diverse global power infrastructures. For three-phase systems, the input configurations cover 380V, 415V and 433V, and all can be converted to single-phase output as needed.

Wide Output Socket Configurations (C13 / C19)

Output configurations range from 2 to 40 sockets, and C13 and C19 interface options are available. The maximum output current of a single socket can reach 10A, 16A, 32A, 63A or even 125A. This flexibility allows the intelligent power distribution unit to meet the needs of a wide range of server rack configurations.

Remote Network Management and TCP/IP Control

Remote management is achieved via TCP/IP, with support for SNMP V1, V2, V3, Telnet, SSH, and Modbus-RTU. Cascade management allows multiple units to be controlled from a single interface. Wifi connectivity is also available. These features make this smart pdu data center ready, enabling centralized power control without physical access to the rack.

Per-Outlet Power Monitoring and Metering

Each output port supports monitoring of voltage, current, power (watts), and energy (kilowatt-hours). High-end models offer metering accuracy of up to 0.2%, which is crucial for accurate capacity planning and billing in colocation data centers.

Overload Protection and Safety Mechanisms

This PDU features single-port current limiting and an automatic power-off function in case of overload. Main circuit protection is provided by UL or CE certified 125A three-pole circuit breakers. The enclosure, which meets the UL94V-0 fire rating, effectively prevents fire hazards.

Environmental Monitoring

In addition to electrical parameters, the PDU can monitor temperature and humidity. This enables the system to trigger an alarm or shut down when environmental conditions exceed safety thresholds.

Custom OEM/ODM Branding Support

OEM and ODM services are available, including custom logos, socket types, input connectors, and even breaker configurations.

3. Technical Parameters and Performance Metrics

Input Voltage and Phase Options

Output Power Capacity and Current Ratings

Rating output voltage ranges from 208 to 300VAC. Under 240V, each outlet can deliver up to 3840W. Under 250V, up to 4000W per outlet. Total output power can reach 4432W × 24 outlets.

Socket Standards and Outlet Configurations

The standard configuration includes 12 × C19 outlets, but this is fully customizable. Other socket standards (IEC or NEMA) are available upon request.

Quantified Accuracy and Testing

All units pass hi-pot test, salt spray test, grounding test, polarity test, IR test, socket life test, and aging test. The metering accuracy reaches 0.2% in high-end models. Plastic flame retardant rating is UL94V-0.

Certifications

The product has obtained CE certification (2014/35/EU). Certificate number: M.2021.206.C68490.

4. Remote Control and Data Management

Access Protocols

The intelligent rack pdu supports multiple access methods: Telnet, SSH, Modbus-RTU, and SNMP V1/V2/V3. This makes it compatible with most data center infrastructure management (DCIM) platforms.

On/Off Control and Scheduling

Each outlet can be turned on or off remotely. Users can set individual boot time delays, schedule on/off times, and apply current limits per outlet. Overload triggers automatic power-off.

Data Logging and Graphical Display

The PDU logs energy consumption per outlet and totalizes kWh usage. Data is displayed graphically via the web interface. Historical logs can be saved and exported for analysis.

Alarm and Security Management

Multiple alarm modes are available, including email, SNMP traps, and visual indicators. User management allows different permission levels, and the system supports cascade management for large deployments.

5. Core Technology: Dynamic Power Allocation

This intelligent power distribution unit incorporates dynamic power allocation technology. It continuously monitors the power draw of each connected server or miner and adjusts allocation in real time. An adaptive algorithm optimizes power distribution strategies to handle load fluctuations and environmental changes. The modular design supports multi-level control, making it easy to expand or upgrade without replacing the entire unit. This is particularly valuable in mining farms where load profiles change frequently.

6. Applications

Data Centers and Server Rooms

The application of smart PDUs in data centers is the most common use case. Remote per-outlet switching, power metering, and environmental monitoring reduce on-site maintenance and improve uptime.

Industrial and Production Environments

Factories and production lines benefit from the robust aluminum housing, UL94V-0 fire rating, and wide operating temperature range. The industrial version can be customized with higher ingress protection.

Financial and Educational Institutions

Banks and universities require reliable power with audit trails. The intelligent rack pdu provides per-outlet energy logging, user access controls, and alarm history — all essential for compliance.

7. How to Choose and Customize Your Rack PDU

When selecting a smart pdu, consider the following:

• Phase and voltage: Single-phase (120–240V) or three-phase (380–433V)?
• Total current: 16A, 32A, 63A, or up to 125A?
• Outlet count and type: C13, C19, or mixed? 8 to 32 outlets?
• Mounting: Horizontal (1U/2U) or vertical?
• Functionality: Metered-only or monitored/switched?
• Environment: Indoor data center or harsh industrial/mining?

As a smart power distribution unit factory, we offer full OEM/ODM services. You can customize input connectors, output sockets, breaker ratings, housing color (silver white or black), and even silk-screen your logo.

8. Conclusion

The intelligent power distribution unit (PDU) described here is a reliable, feature-rich power control solution for modern data centers and industrial facilities. Featuring per-outlet monitoring, remote switching, overload protection, environmental sensing, and dynamic power distribution, this device significantly improves both energy efficiency and operational safety. Backed by CE certifications and available with full OEM/ODM customization, this intelligent rack PDU meets the demanding requirements of today’s always-on digital infrastructure.

Whether you need a basic metered PDU or a fully managed, controllable PDU with accuracy up to 0.2%, working directly with us ensures you get a configuration that perfectly meets your project requirements.
